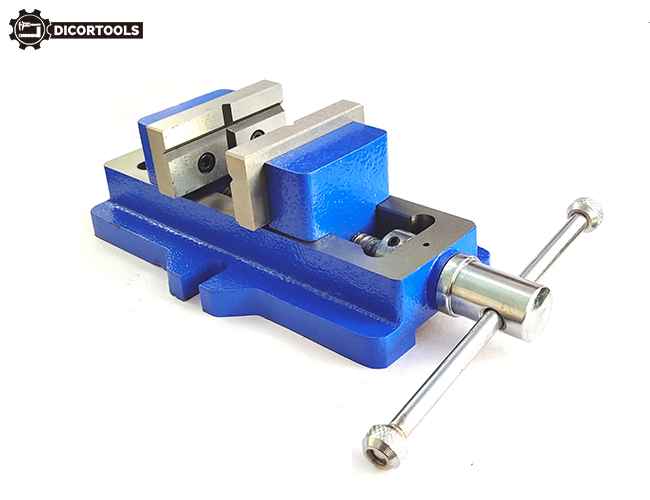

High Precision Self-Centering Vise | 2", 3", 4" | For Milling & Drilling
Ideal for secure clamping during machining or assembly
₹1800.00₹1300.00
Overview
Centering made simple. Our Precision Self-Centering Vise is the ultimate tool for tasks requiring the workpiece to remain centered on a fixed axis. Unlike standard vises where one jaw moves, both jaws on this unit move simultaneously toward or away from the center.
This design is essential for centering holes on round or rectangular stock and is the perfect companion for Rotary Tables or CNC machining centers where the "Zero" point must stay constant.
Key Features
Dual-Action Jaws: Both jaws move in sync to ensure your workpiece is always perfectly centered.
Precision Ground: The base and sliding surfaces are precision ground to ensure high accuracy and parallelism.
High-Tensile Strength: Forged from seasoned cast iron or alloy steel (specify your material) to prevent jaw lifting or deflection under pressure.
Compact Low-Profile: Designed to maximize your "Z-axis" workspace, making it ideal for mini-mills and benchtop setups.
Reversible Jaws: (If applicable) Jaws can be reversed or customized for different grip requirements.
Specifications by Size
Feature | 2" (50mm) Model | 3" (75mm) Model | 4" (100mm) Model |
Jaw Width | 2" (50mm) | 3" (75mm) | 4" (100mm) |
Max Opening | 2" (50mm) | 3" (75mm) | 4" (100mm) |
Jaw Height | 1" (25mm) | 1.25" (32mm) | 1.5" (38mm) |
Overall Height | 2.2" (55mm) | 2.7" (68mm) | 3.2" (81mm) |
Base Dimensions | 3" x 3.5" | 4.2" x 5" | 5.5" x 6.5" |
Best Used On | 3" Rotary Table / Mini Mill | 4" Rotary Table / Benchtop/Milling | 6" Rotary Table / CNC/Milling |
Why Choose a Self-Centering Vise?
Saves Setup Time: No need to re-find your center point when switching between different sized workpieces.
Consistency: Ideal for slotting, grooving, and boring where symmetry is critical.
Versatility: Works seamlessly on drill presses, milling machines, and especially Rotary Tables.
Technical Maintenance
Keep the lead screw clean and well-lubricated with machine oil.
Check for "backlash" regularly to maintain extreme precision.
Ensure the mounting surface is free of burrs before securing to your table.
