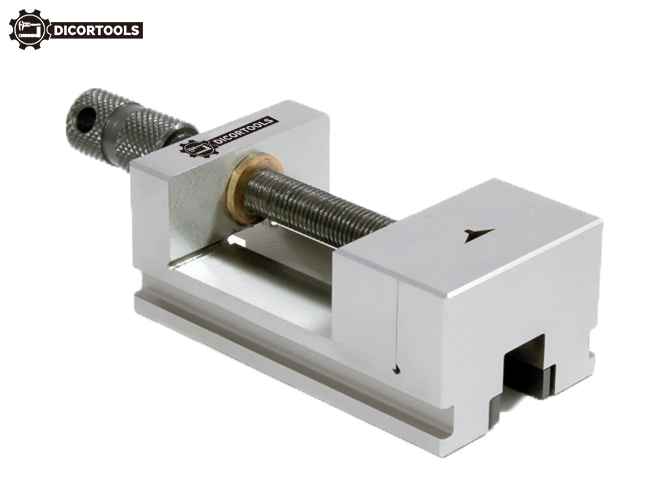

Precision Screw Type Tool Maker Grinding Vise | Hardened Steel | 0.005mm Accuracy
Steel Tool Maker Vise - Screw Type for Surface Grinder & CNC - Precision Workholding Tool
₹2500.00₹2000.00
Product Overview
The Screw Type Tool Maker Grinding Vise is an essential workholding tool for high-precision machining. Unlike standard shop vises, this all-steel tool maker vise is engineered for the tightest tolerances in surface grinding, CNC milling, and precision inspection.
Constructed from premium alloy steel and vacuum hardened, it provides the stability required for micron-level accuracy. The screw-driven mechanism offers continuous, smooth clamping, making it superior for delicate workpieces where "pin-type" increments are too coarse.
Key SEO-Rich Features
Ultra-Precision Ground: Ground to a parallelism and squareness of within 0.005mm/100mm, ensuring your setup remains perfectly aligned across all faces.
Hardened Alloy Steel (HRC 58-62): Manufactured from high-tensile steel to prevent wear and maintain accuracy over years of heavy toolroom use.
Versatile 6-Sided Use: The vise body is precision-ground on all sides, allowing it to be used upright, on its side, or on its end for multi-axis machining.
Anti-Lift Mechanism: Specially designed so that the movable jaw is pulled downward during tightening, preventing jaw lift and ensuring the workpiece stays flat.
Precision Lead Screw: Features a high-quality internal thread for fine-tuned clamping pressure, ideal for EDM and metrology applications.
Technical Specifications
Feature | Technical Detail |
Product Type | Screw Type Tool Maker Vise |
Material | Alloy Steel (20Cr / CrMnTi) |
Hardness | HRC 58 - HRC 62 |
Parallelism | 0.005mm / 100mm (0.0002") |
Squareness | 0.005mm / 100mm (0.0002") |
Clamping Style | Infinite Screw Adjustment |
Application | Surface Grinding, EDM, Milling, Inspection |
Why Use a Screw-Type Grinding Vise?
Professional machinists prefer the screw-type tool maker vise for several reasons:
Micro-Adjustable: The screw allows for "feather-touch" tightening, which is critical for thin-wall tubing or brittle materials.
Compact Design: No protruding pins or bulky handles, making it perfect for small magnetic chucks.
Stability: The solid steel block construction dampens vibrations, leading to a superior surface finish on your parts.
Common Applications
Surface Grinding: Securely hold parts on a magnetic table.
Jig Boring: High-accuracy hole placement.
CNC Machining: Precise small-part workholding.
Metrology & Inspection: Check squareness and dimensions with confidence.
Maintenance & Storage
To preserve the 0.005mm precision, always clean the vise after use with a soft cloth. Apply a light film of anti-rust machine oil and store in a dry environment. Check the jaw faces for any micro-burrs before clamping precision-ground stock.
