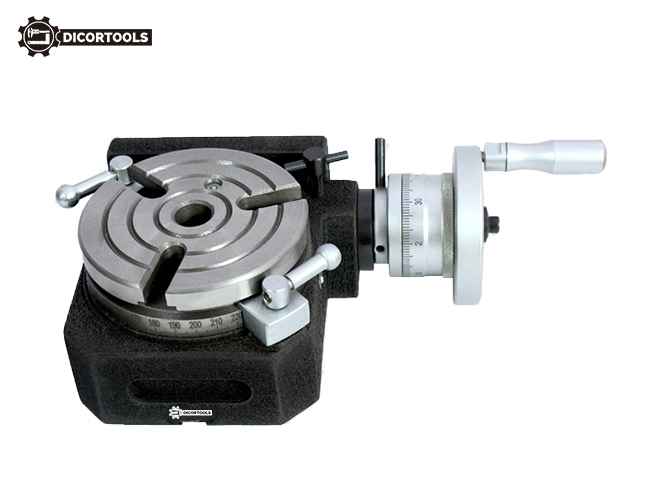

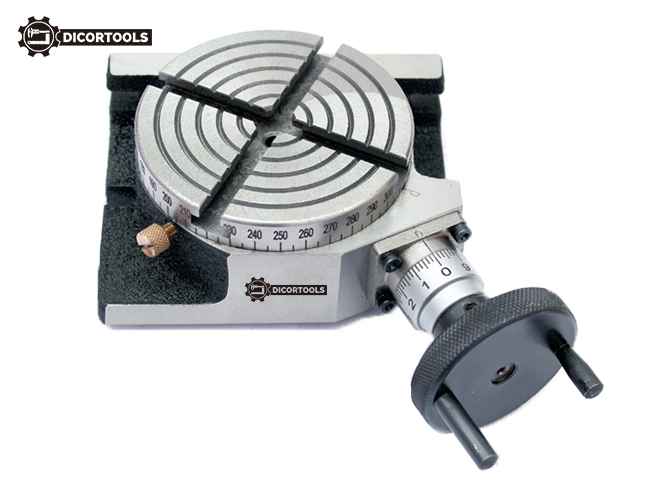

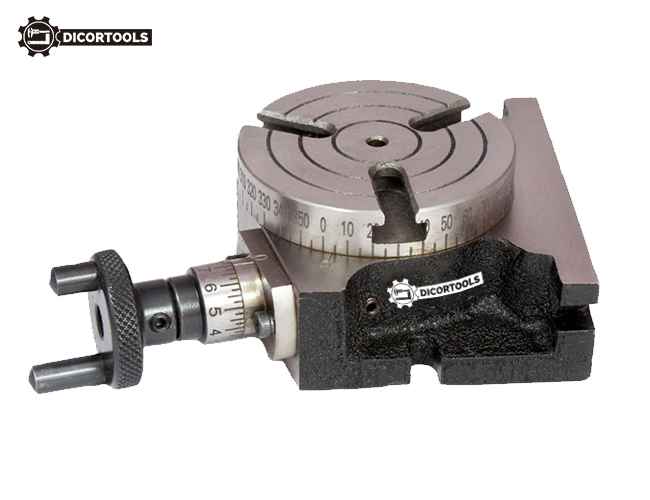

HV Series Precision Rotary Table for Milling Machines – 360° Manual Indexing

ROTARY TABLE HV-3"/4"/6"

• Optimized: Precision Horizontal & Vertical Rotary Table | 3", 4", 6" Sizes Available

• Detailed: High Precision Rotary Table for Milling Machine - HV Series (3" / 75mm, 4" / 100mm, 6" / 150mm)

• Value-Focused: Professional Grade Rotary Table with 360° Scale - Manual Indexing Table for Drilling & Milling

Product Overview

Unlock complex machining capabilities with our HV Series Rotary Tables. Designed for precision circular cutting, hole drilling, and indexing, these tables allow you to transform a standard milling machine into a versatile production center.

Whether you are cutting gears, machining flutes, or performing circular interpolation, our tables offer the rigidity and accuracy required for professional-grade results. Available in three sizes to fit everything from mini-lathes to full-sized knee mills.

Key Features

• Dual Position Mounting: Can be used both Horizontally (flat) and Vertically (upright), offering maximum flexibility for different setups.

• Precision Gear Ratio: Features a high-tensile worm gear drive with a 90:1 ratio (1 handle revolution = 4° rotation), allowing for ultra-fine adjustments.

• 360° Graduation: The main table is graduated a full 360°, while the handwheel dial allows for direct reading down to 10 seconds or 1 minute (depending on model).

• Disengageable Worm: The worm gear can be disengaged for quick manual rotation of the table during setup.

• Durable Build: Constructed from seasoned, high-grade cast iron with a ground finish for superior wear resistance.

Size & Compatibility Specifications
