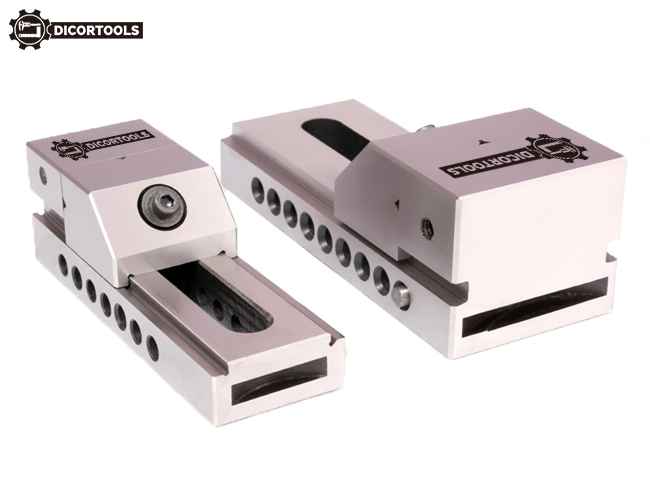

Precision Pin Type Tool Maker Grinding Vise - Hardened Steel
Ultra-Precision Pin-Type Tooling Vise for Grinding & Inspection – Hardened Steel
₹4000.00₹3500.00
Overview
Precision engineering at its finest. Our Pin-Type Tool Maker’s Vise is designed for work that demands extreme accuracy. Unlike standard vises, the pin-type mechanism allows for rapid adjustment across a series of precision-drilled holes, providing a secure, non-slip lock for delicate grinding, drilling, and inspection tasks.
This vise is heat-treated and precision ground on all six sides, allowing it to be used on its base, sides, or end while maintaining perfect squareness.
Key Features
Pin-Lock Mechanism: Features a removable steel pin that slots into precision-drilled holes for rapid jaw positioning and maximum holding security.
Six-Sided Precision: Fully ground on all faces. You can turn the vise on its side or end for complex machining without losing accuracy.
Superior Material: Constructed from high-quality Alloy Steel (CrMnTi/20Cr), hardened to HRC 55-58 for lifetime durability and wear resistance.
Exceptional Accuracy: * Squareness: 0.006mm / 100mm
Parallelism: 0.006mm / 100mm
V-Groove Jaw: The movable jaw features a precision-cut V-groove to hold cylindrical and round workpieces vertically or horizontally with ease.
Technical Specifications
Feature | Specification |
Material | Hardened & Ground Alloy Steel (HRC 55-58) |
Squareness/Parallelism | Within 0.006mm |
Drive System | Pin-Type Rapid Adjustment with Screw Tightening |
Benefits for the Machinist
Fast Setup: The pin-style adjustment is significantly faster than long-travel lead screws for varying workpiece sizes.
Zero Deflection: The downward pressure design of the movable jaw prevents "jaw lift," ensuring your workpiece stays flat against the bed.
Multi-Axis Use: Perfect for surface grinders where you need to grind the side of a part—just flip the vise on its side.
Maintenance & Care
Rust Prevention: Always wipe down with a precision tool lubricant or light machine oil after use.
Storage: Store in a padded wooden box or a dry environment to maintain the precision ground surfaces.
Cleaning: Ensure no grit or metal dust remains in the pin holes before locking.
Ideal For
Surface Grinding
Tool & Die Making
Precision Inspection & Layout
Wire EDM Operations
