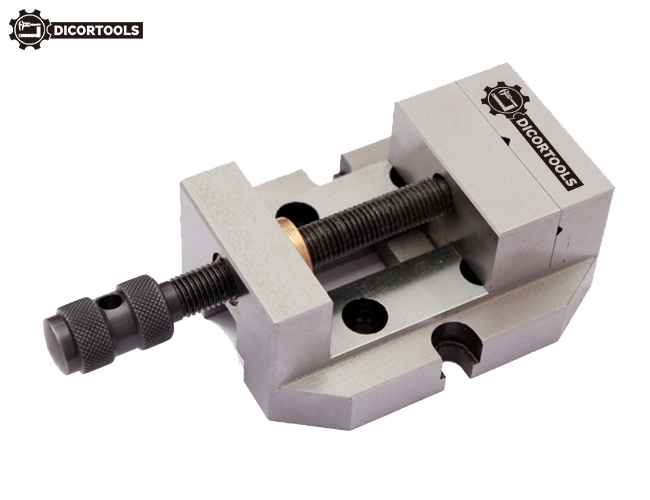

63mm Precision All-Steel Milling Vise for 4" x 5" Lathe Vertical Slide
High-Tensile Steel Milling Vise - 63mm Jaw Width - Fits Lathe Vertical Slide 4x5
₹3500.00₹2800.00
High-precision 63mm (2.5") all-steel vise for 4"x5" lathe vertical slides. Perfect for Myford & Mini Lathes. Ideal for milling, slotting & keyway cutting.
Overview
Turn your lathe into a milling machine. This 63mm precision vise is specifically engineered to mount directly onto 4" x 5" (100 x 125mm) Vertical Slides. It provides a rigid work-holding solution for milling slots, keyways, and small components on your lathe setup.
Compact yet robust, this vise is the perfect fit for small workshop lathes where space is at a premium but precision is non-negotiable.
Key Features
Perfect Slide Integration: Designed with mounting holes that align specifically with standard 4" x 5" vertical slides.
High-Quality Casting: Made from seasoned, high-tensile cast iron to ensure rigidity and minimize chatter during milling.
Hardened Steel Jaws: The jaws are ground and hardened to maintain a long life and provide a mar-free, secure grip on your workpieces.
Horizontal & Vertical V-Grooves: One jaw features precision-cut V-slots, allowing you to hold round bar stock securely in both orientations.
Slim Profile: Engineered to provide maximum jaw opening while maintaining a low height to preserve your lathe's "swing" and travel.
Technical Specifications
Feature | Specification |
Jaw Width | 63 mm (2.5") |
Jaw Opening | 50 mm (2") |
Jaw Depth | 25 mm (1") |
Body Material | High-Grade Seasoned Cast Iron |
Jaw Material | Hardened Tool Steel |
Compatibility | Fits 4" x 5" (100x125mm) Vertical Slides |
Mounting Bolts | Included (or specify if they are sold separately) |
Export to Sheets
Why This Vise?
Lathe Versatility: Ideal for those who don't have a dedicated milling machine.
Compact Strength: Unlike larger vises, this does not "overhang" small vertical slides, ensuring better balance and less vibration.
Accuracy: Precision ground base ensures the vise sits perfectly square to your slide face.
Pro Tip for Customers
When mounting to your vertical slide, ensure the slide face is wiped clean of all oil and metal chips. Use a small square or a dial indicator to "tram" the vise jaws to the lathe spindle for perfectly parallel milling cuts.
Recommended For
Model Engineering (Steam engines, clocks, RC parts)
Small Tool Making
Keyway Cutting and Slotting on the Lathe
